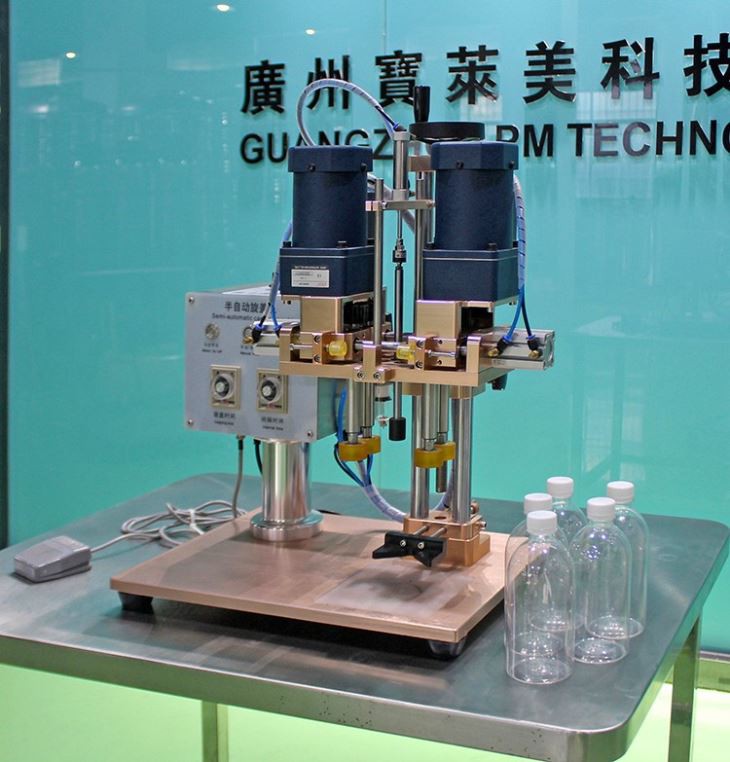

Manual Capping Machine

Semi-automatic pneumatic capping machine:

It is suitable for equipped with positioning device, standard screw cap, convenient operation; wide range of locking cap, can lock bottle caps of different shapes and specifications; solve the problem of difficult cap screwing of spray head, pump head, spray pump, and hand-lock spray gun; lock cap The speed is adjustable, and the tightness can be adjusted according to different bottle caps. It is used for cap-locking machinery for spray heads/pump heads/spray pumps/hand buckle spray guns in various daily chemical, pharmaceutical and chemical industries.

Way of working:

Put the bottle cap on the bottle mouth manually, then place the bottle under the 4 friction wheels, and set the screw cap height of the machine. When the machine is capping, the 4 friction wheels move closer to the middle and keep rotating, and the bottle cap rotates with the friction wheel under the action of friction to complete the capping.

Machine features:

1. Automatic counting function.

2. According to different containers and different requirements, the degree of tightening of the bottle cap can be adjusted by adjusting the torque.

3. Manual capping: foot switch control. Step on the foot switch once and turn the cover once.

Automatic capping: In the automatic state, capping once at intervals.

4. Equipped with positioning device, convenient operation and high production efficiency.

Control Panel

Various functions are clear at a glance, easy to operate and quick to get started

Screw cap device

Silicone material, stable screw cap, no slipping, no damage to the bottle

Height adjustment wheel

Adjust according to different bottle heights, height can be customized

High performance motor

High-power dual-motor output to ensure stable power and long-lasting durability

Stroke positioning block

According to the diameter of the bottle cap, adjust the screw cap range, can be customize

Bottle positioning device

Automatically correct the site where the cap is placed
